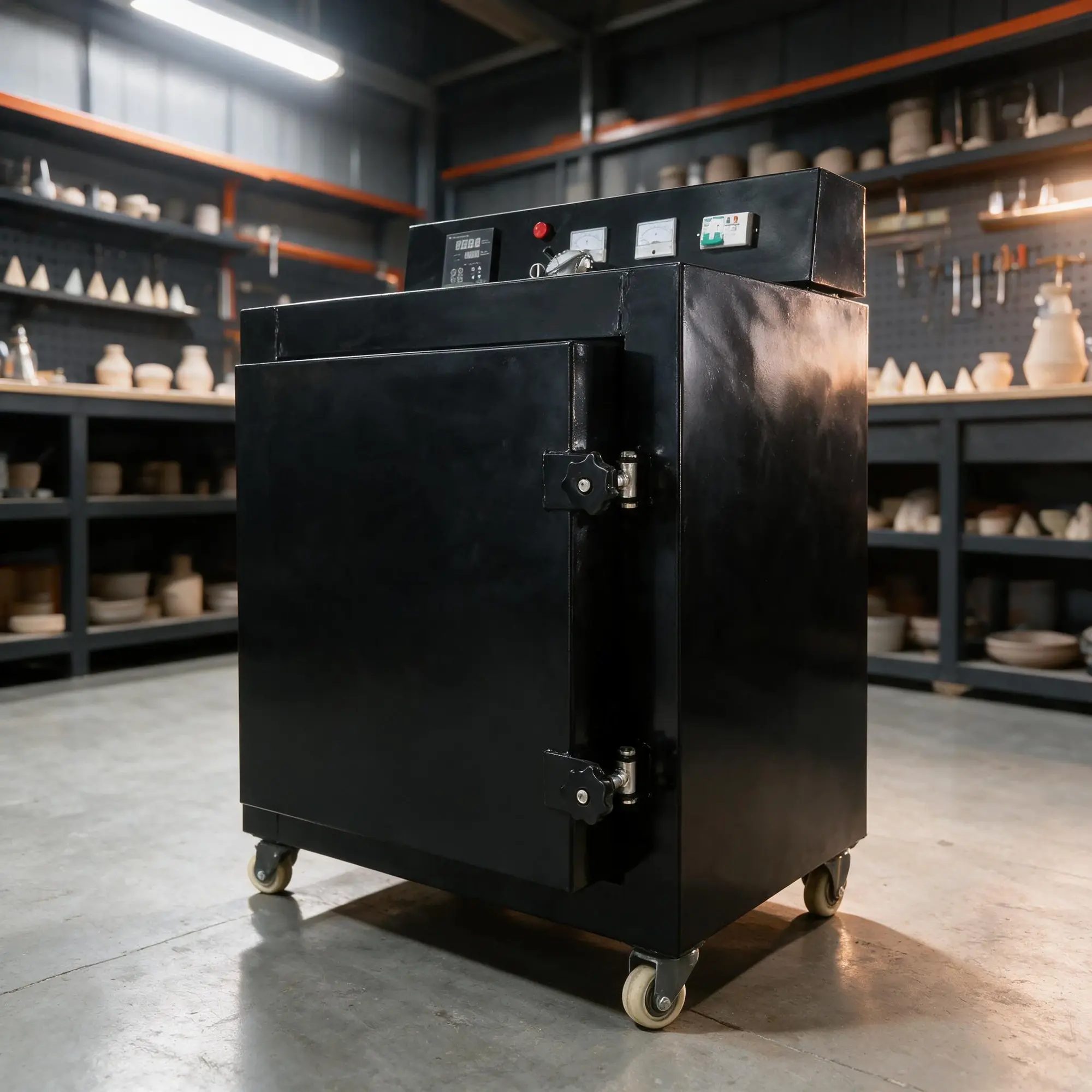

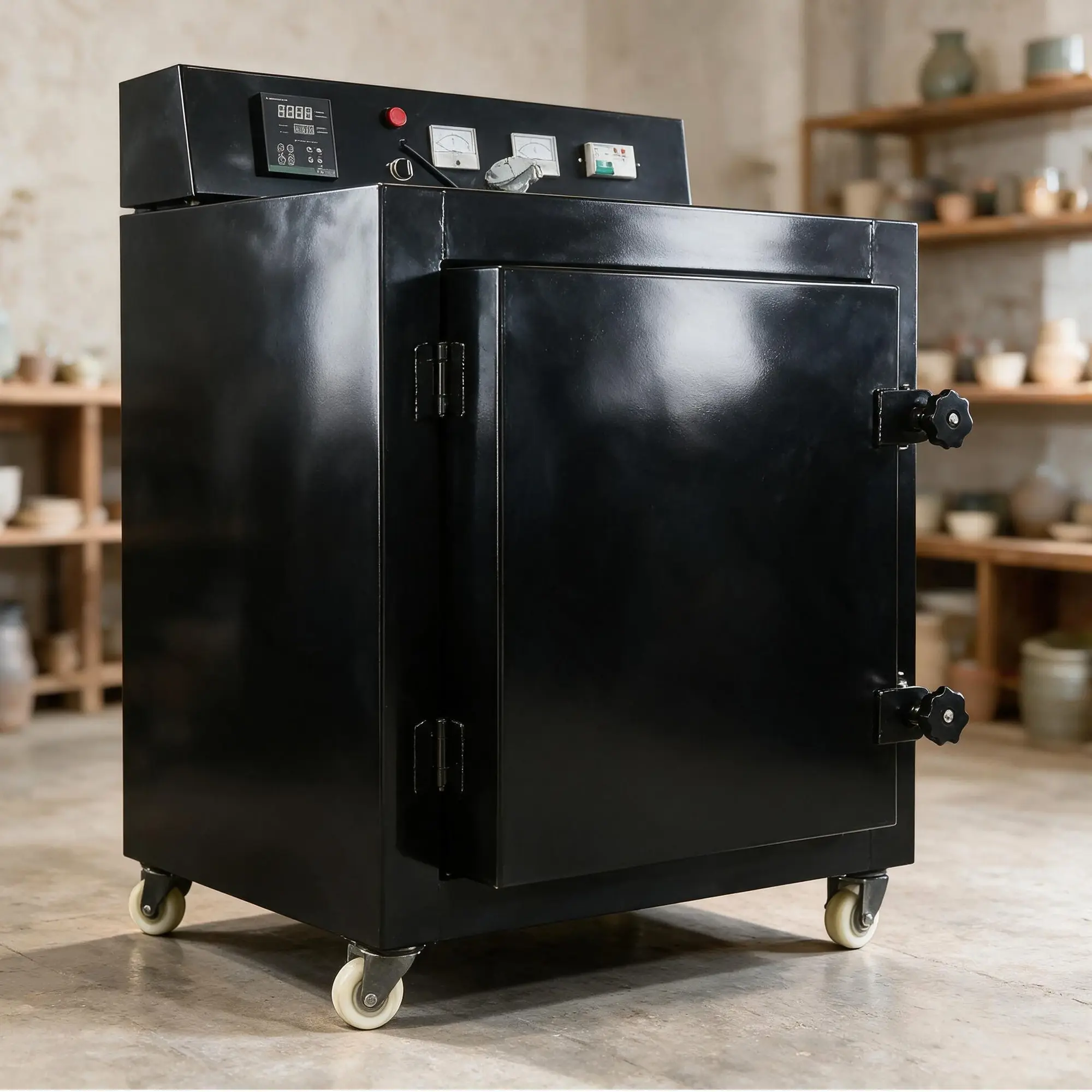

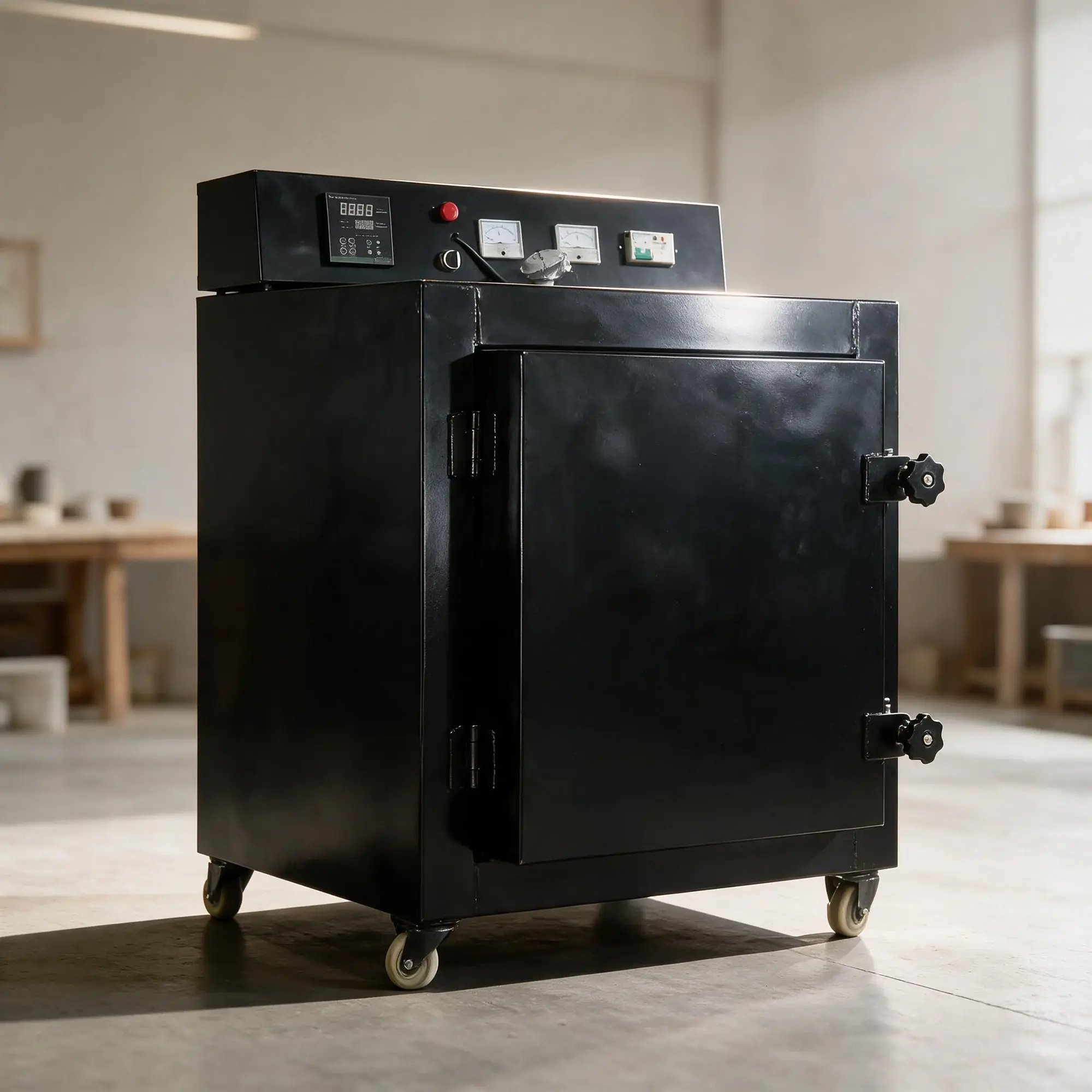

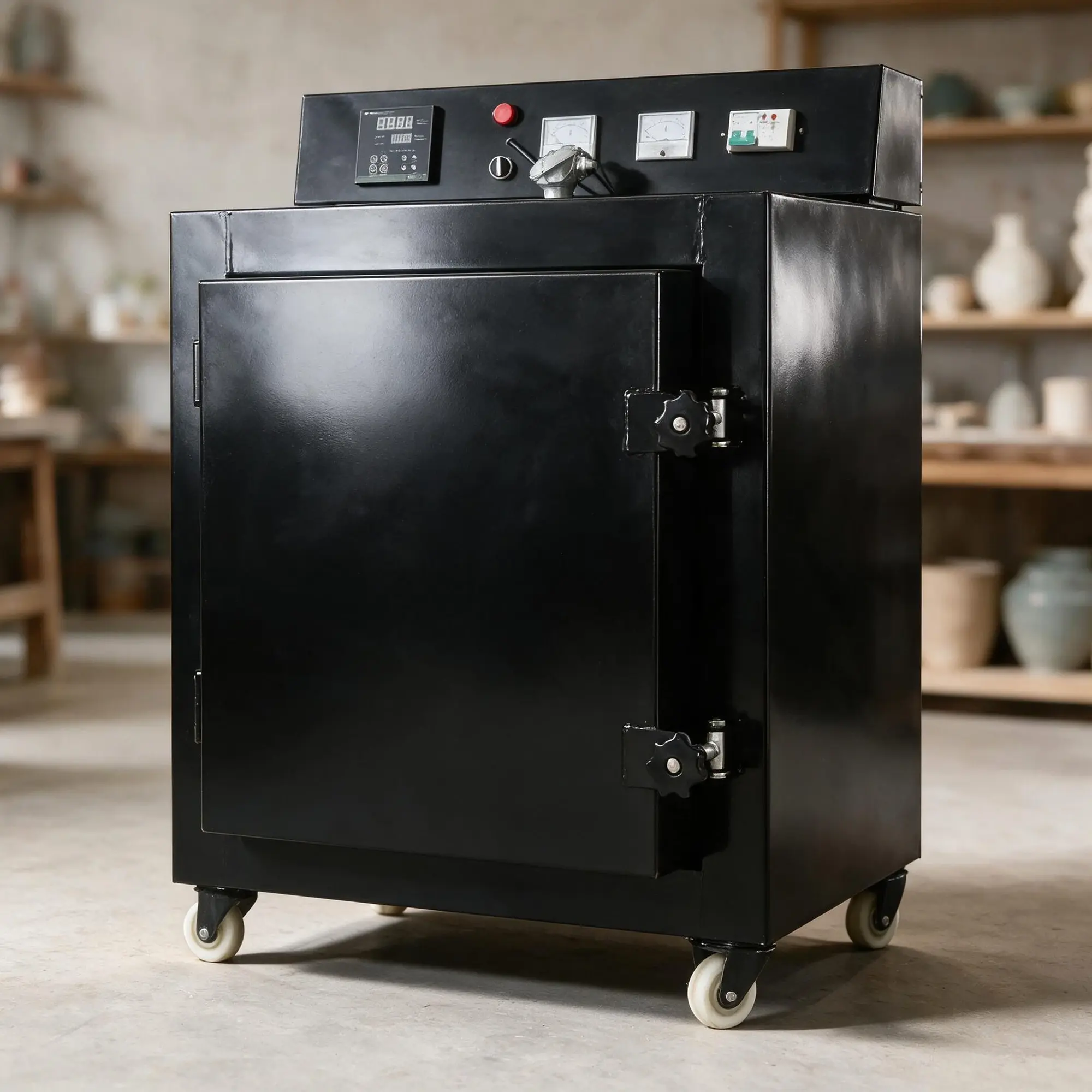

Pottery Kiln 50L 6kW with 30-Segment Programmable Firing

SKU: PPK00021

$3,519.99

$2,989.99

Save $530

4 fortnightly payments of $747.50 withAfterpay

Capacity
50L
Supply
220V single phase
Power
6kW
View all specifications

Built for the job.

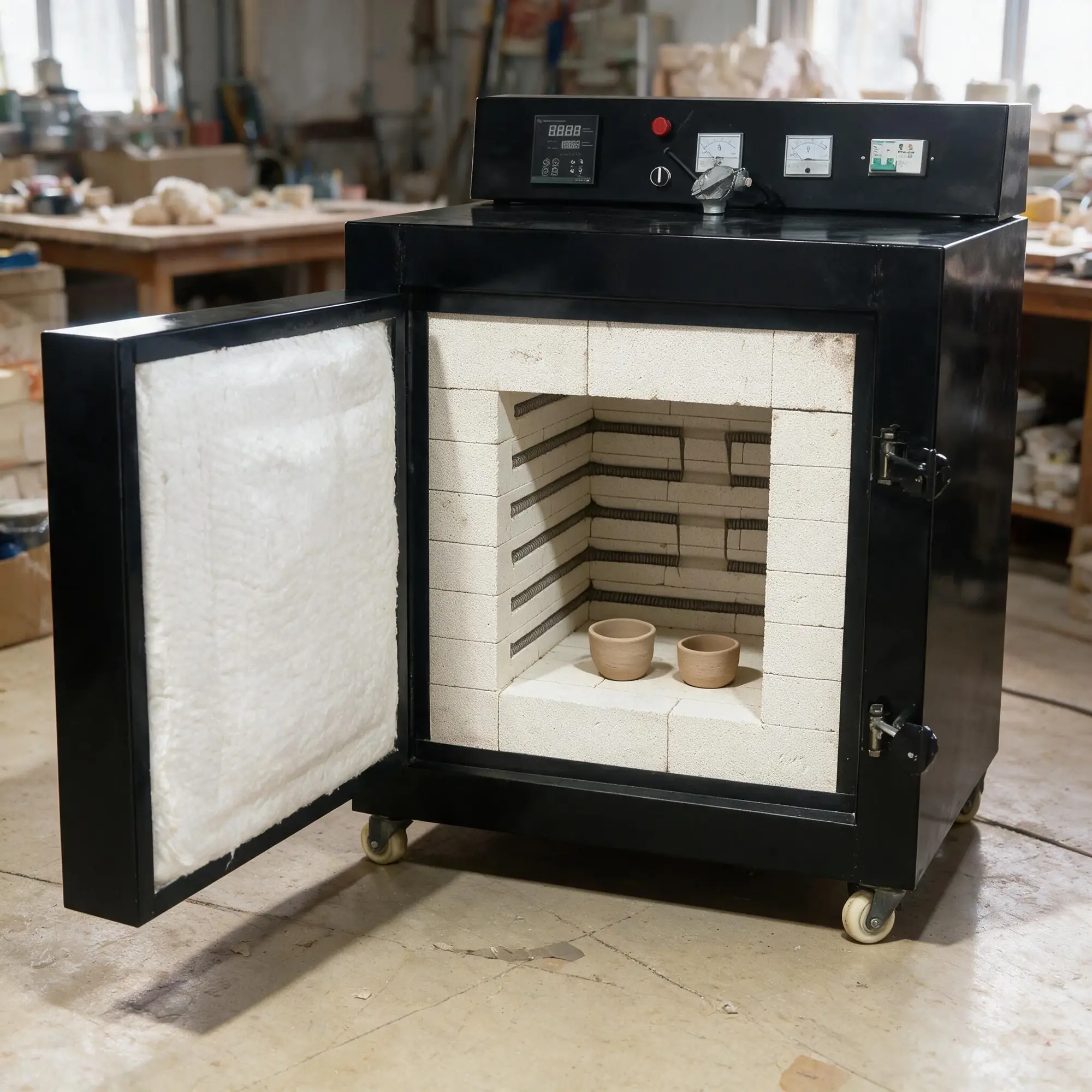

A large-capacity electric kiln for ceramics and pottery studios that need repeatable programmable firing. The controller includes five default firing programs and supports custom heating curves across up to 30 segments, with over-temperature protection built in.

50L chamber provides useful capacity for pottery and ceramics production.

Programmable controller supports up to 30 heating segments, five default programs and custom firing curves.

High-temperature refractory brick lining helps retain heat through programmed firing cycles.

Over-temperature protection is built into the automatic temperature-control system.

Requires connection by a qualified electrician and is not designed for a standard household plug.

Technical specifications

Final accessories, availability and shipping are confirmed before dispatch.

Capacity50L
Supply220V single phase
Power6kW
CurrentApprox. 28-30A

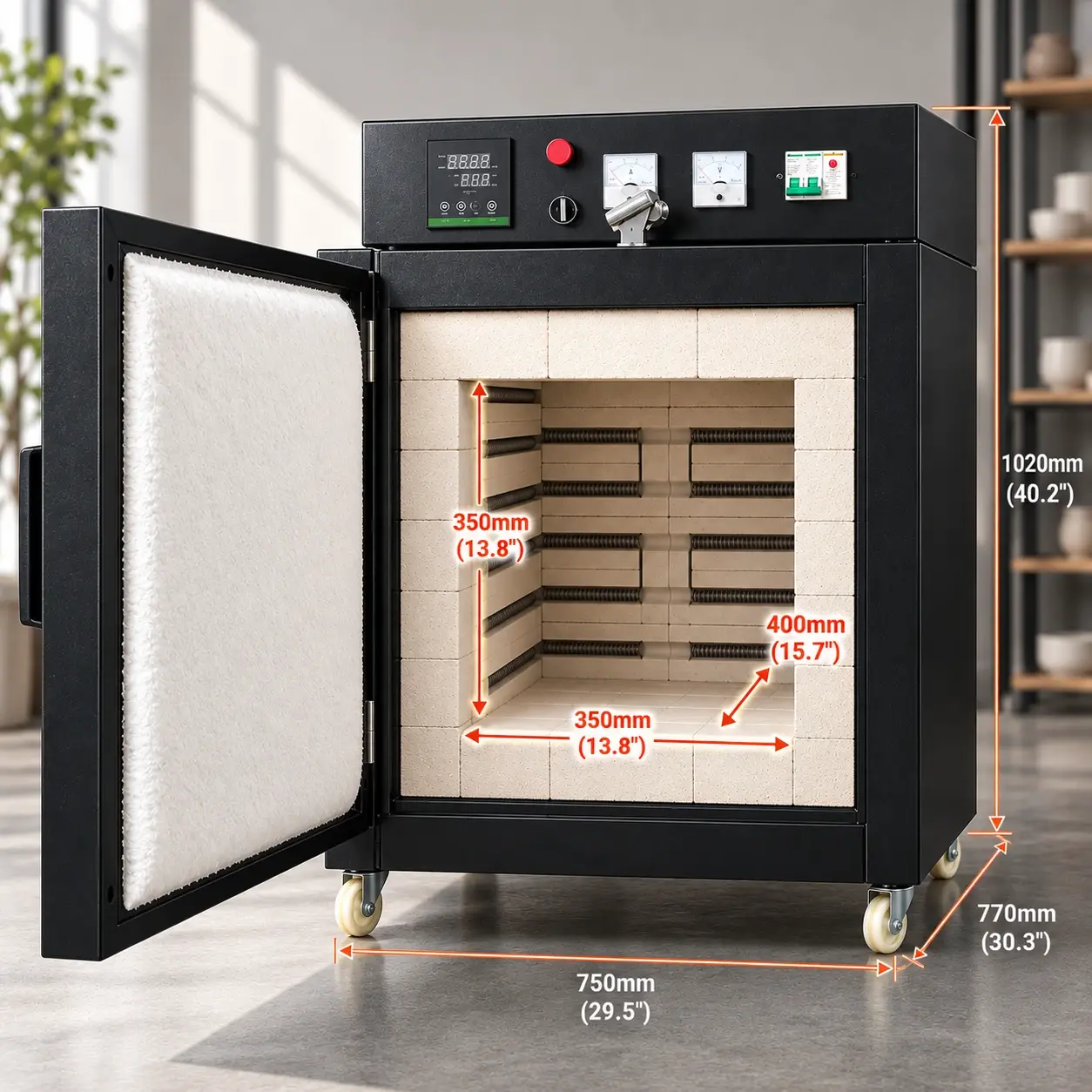

Internal dimensionsApprox. 350 × 350 × 400mm
External dimensionsApprox. 750 × 770 × 1020mm

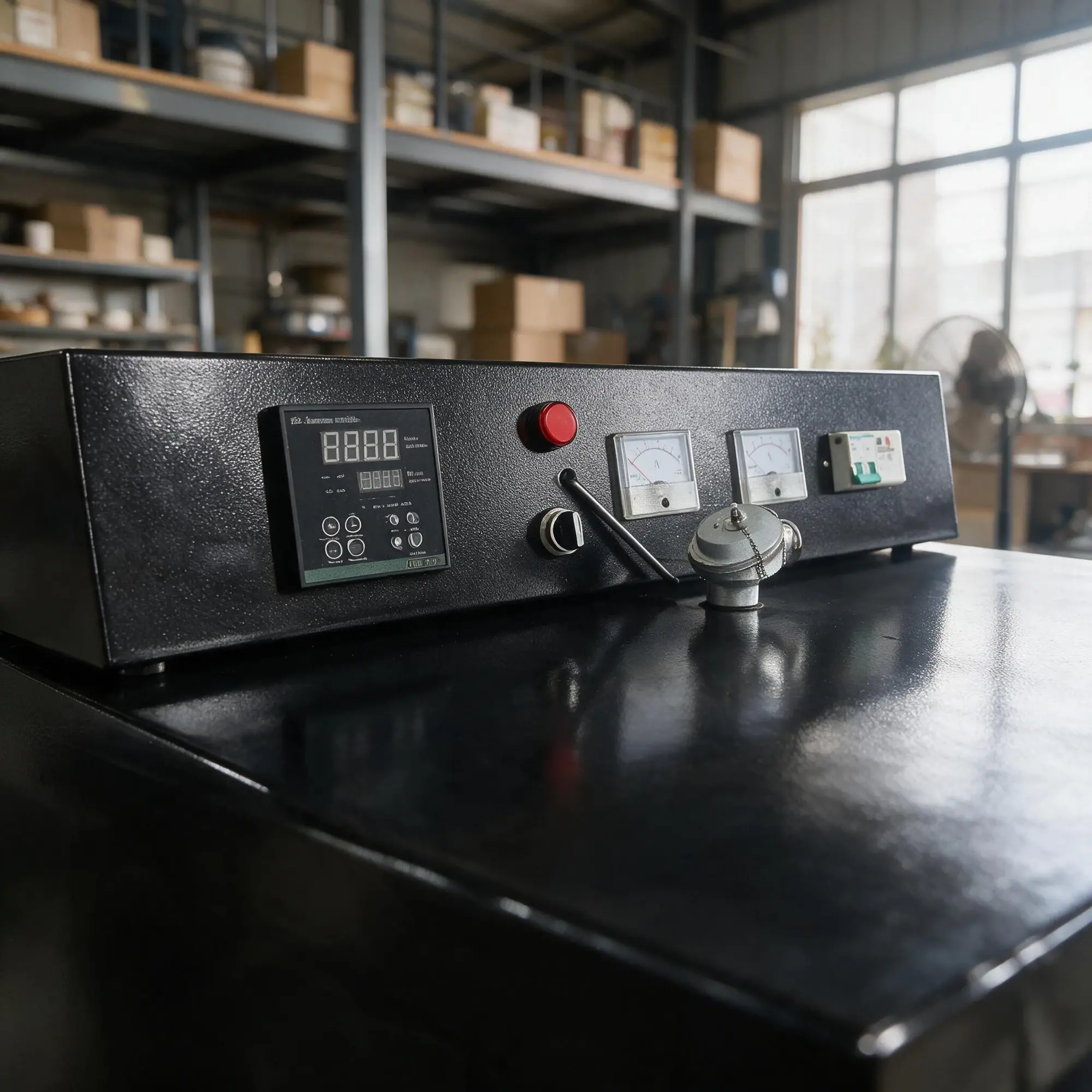

Controller30-segment programmable

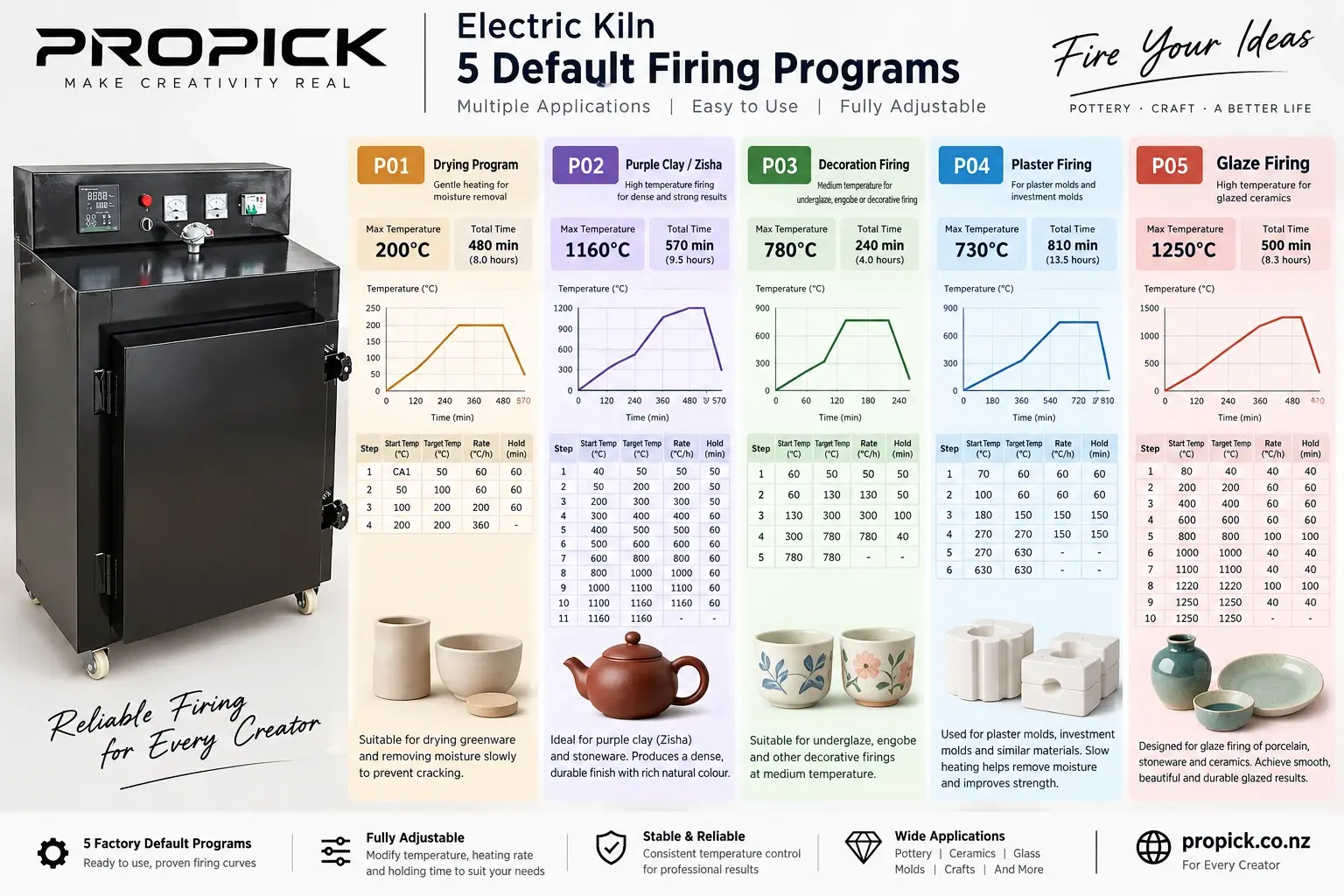

Default programs5, plus custom curves
Chamber liningHigh-temperature refractory brick
WeightApprox. 200kg
Electrical installationQualified electrician required; ≥4mm² copper cable recommended
ShippingCalculated from delivery address at checkout

Guides & manuals

Use the video walkthroughs here or open the downloadable PDF manuals.

What's included

  • 50L electric kiln
  • Temperature probe

Warranty & support

12-month warranty support pathway on eligible products. Freight, misuse, consumables, installation errors and normal wear are excluded unless required by New Zealand law.

FAQ

Can this kiln plug into a normal New Zealand wall socket?

No. It is rated at 220V single phase, 6kW and approximately 28-30A. A licensed New Zealand electrician must confirm the supply, protective device, isolation and cable size for the installation. Do not use a household plug, travel adaptor or extension lead.

Where should the 50L kiln be installed?

Install the approximately 200kg kiln on a level, non-combustible base in a dry, well-ventilated room. Keep combustible storage and shelving away from the hot surfaces, provide the clearances required by the supplied manual and local code, and make sure freight access can accommodate the 750 × 770 × 1020mm external size.

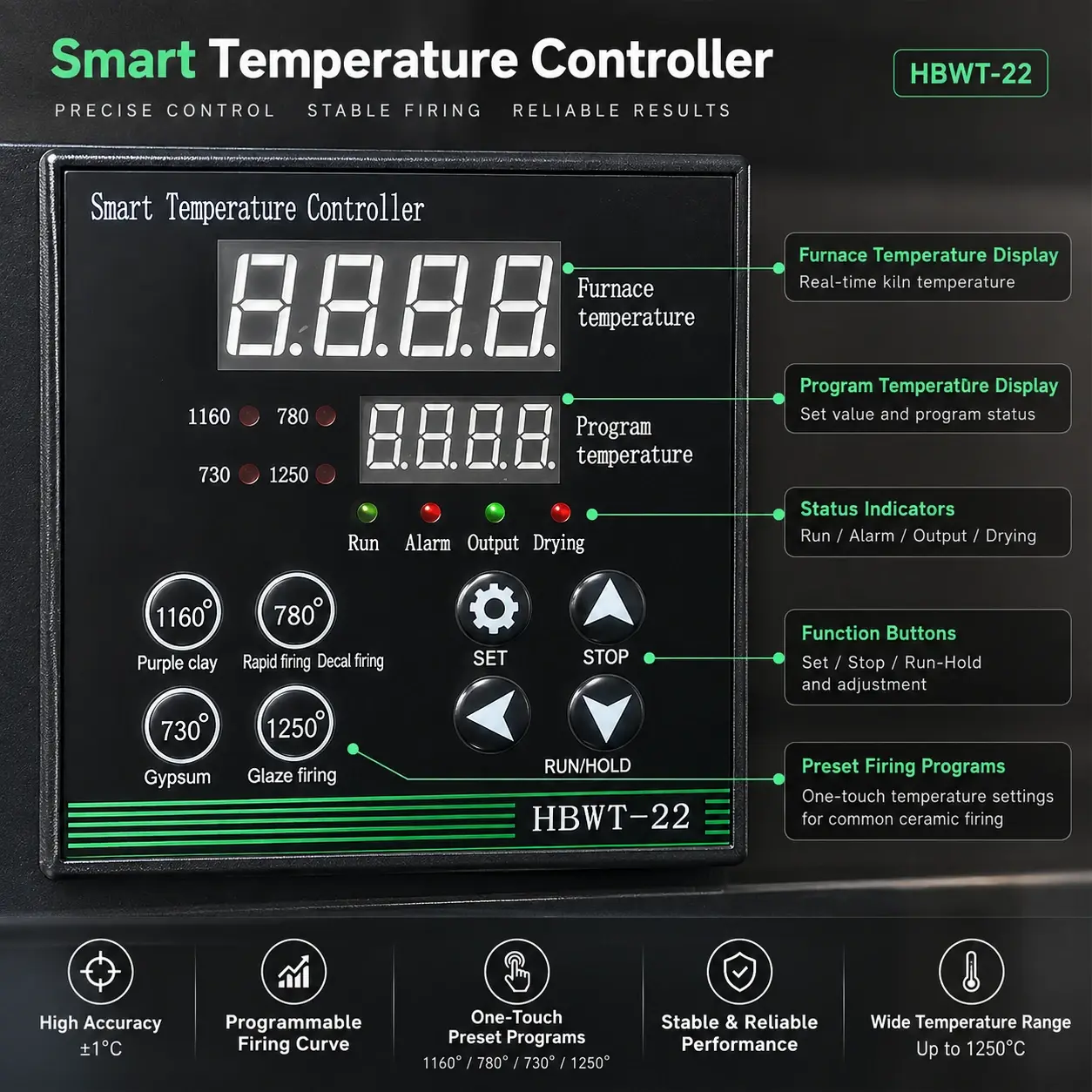

What can the programmable controller do?

It includes five default firing programs and supports custom firing curves with up to 30 heating segments. The separate controller guide explains the programmed ramps and holds. Confirm every program against the clay and glaze supplier's firing schedule before starting a load.

Can I fire any clay or glaze in it?

Only fire ceramic materials whose required temperature and firing curve fall within the kiln's confirmed operating rating. Check the clay body, glaze and kiln-furniture limits together; do not infer a safe top temperature from the chamber size or controller alone.

What should I do before the first production firing?

Read both supplied manuals, inspect the chamber and thermocouple, confirm ventilation and have the electrical installation checked. Run the recommended test firing before valuable ware, monitor the kiln during operation and leave the door closed until the kiln has cooled to the manual's safe opening temperature.
