Metal Lathe WM210A 1100W Brushless with Electronic Gearbox

SKU: PPK00011

$2,949.99

$2,649.99

Motor
1100W brushless motor
Voltage
220V / 50Hz
Distance between centres
400mm
View all specifications
Distance between centers 400mm
Preorder now and save $300.Estimated arrival: 2026,11,23-2026,12,07.

Customise Your Setup

Enhance your setup with optional accessories.

Vertical Slide Milling Attachment 171mm High for WM210 Lathes

Bolt-on vertical slide attachment that turns a WM210 lathe into a light milling setup.

$389.99Original price $479.99
View details

American-Style Quick-Change Tool Post for WM210 Lathes

American-style quick-change tool post for WM210-series lathes. Preorder with an estimated 2–3 week wait.

$269.99
View details

European-Style Quick-Change Tool Post for WM210 Lathes

European-style quick-change tool post for WM210-series lathes. Preorder with an estimated 2–3 week wait.

$399.99
View details

Built for the job.

The WM210A is the step-up lathe pick for buyers who want the same compact WM210 format with easier electronic feed and threading control.

Electronic gearbox system reduces frequent manual gear changes, making feed and threading changes faster and less intimidating.

1100W brushless motor provides strong, stable power with lower noise for longer workshop sessions.

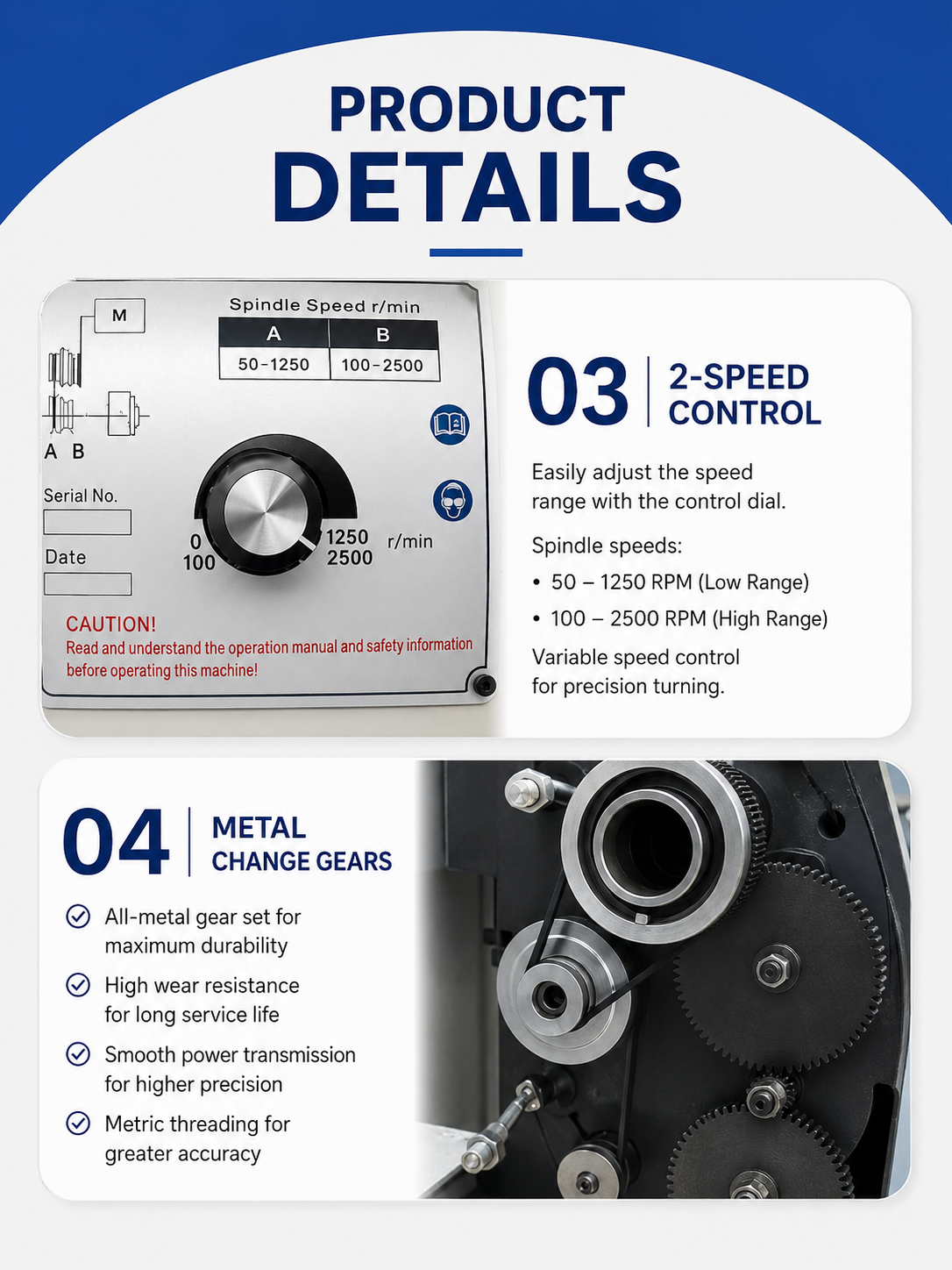

50-2500 RPM electronic variable-speed control suits different materials, from rough cuts to cleaner finishing passes.

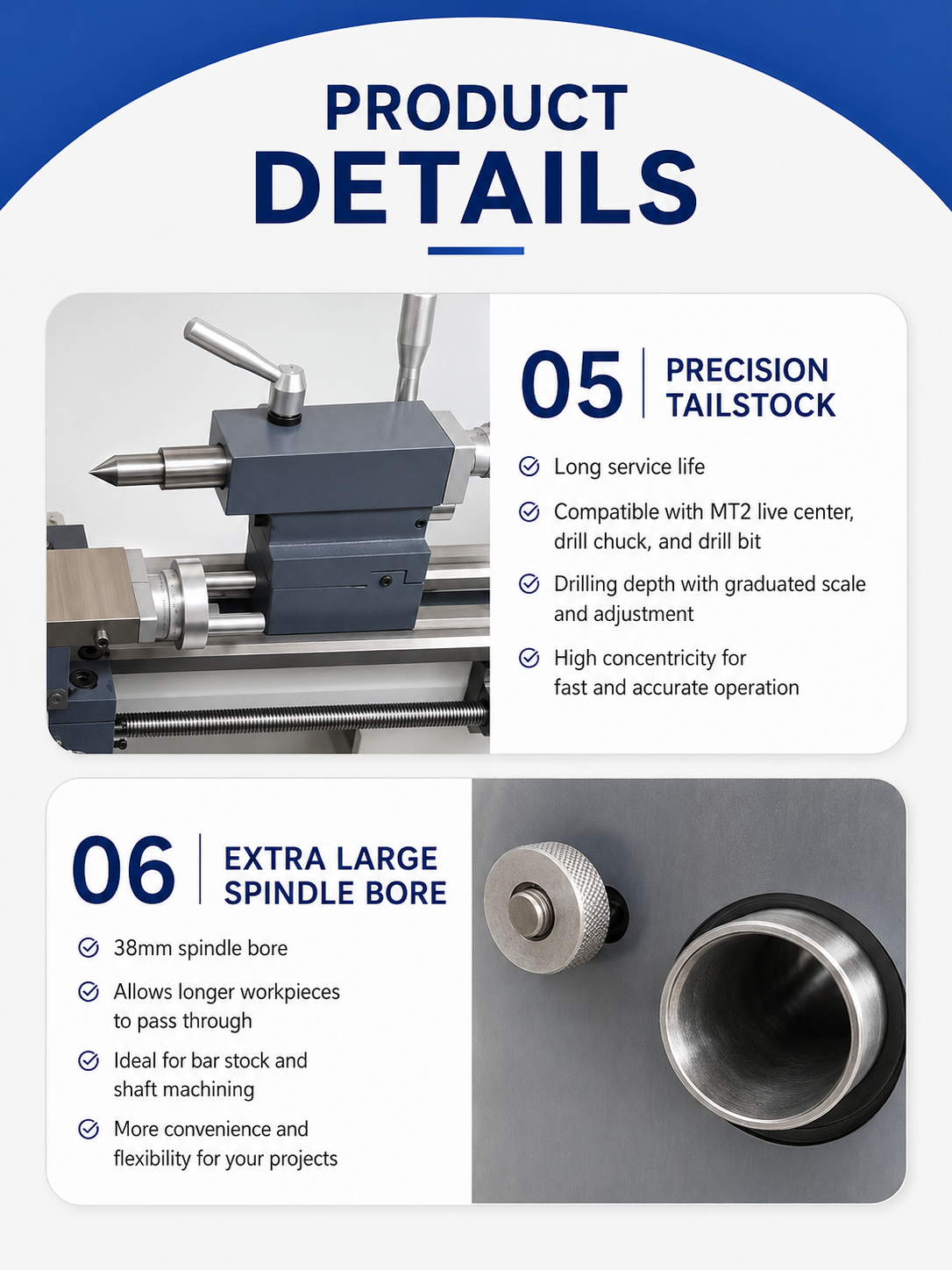

400mm between-centres capacity and 38mm spindle bore make it useful for home workshops, repair benches and small-part fabrication.

High-rigidity metal bed construction helps control vibration and supports more accurate turning results.

Forward and reverse spindle operation supports tapping, threading and more controlled precision machining.

Technical specifications

Final accessories, availability and shipping are confirmed before dispatch.

ModelWM210A
Product typeElectronic-gearbox precision metal lathe
Motor1100W brushless motor
Voltage220V / 50Hz
Distance between centres400/750mm
Swing over bed210mm
Swing over cross slide110-140mm
Spindle bore38mm
Spindle taperMT3
Tailstock taperMT2
Speed range50-2500 RPM
Feed systemElectronic gearbox system
Chuck125mm 3-jaw chuck
ThreadingMetric and imperial thread support
Approx. weight70-85kg
ShippingCalculated from delivery address at checkout

Guides & manuals

Use the video walkthroughs here or open the downloadable PDF manuals.

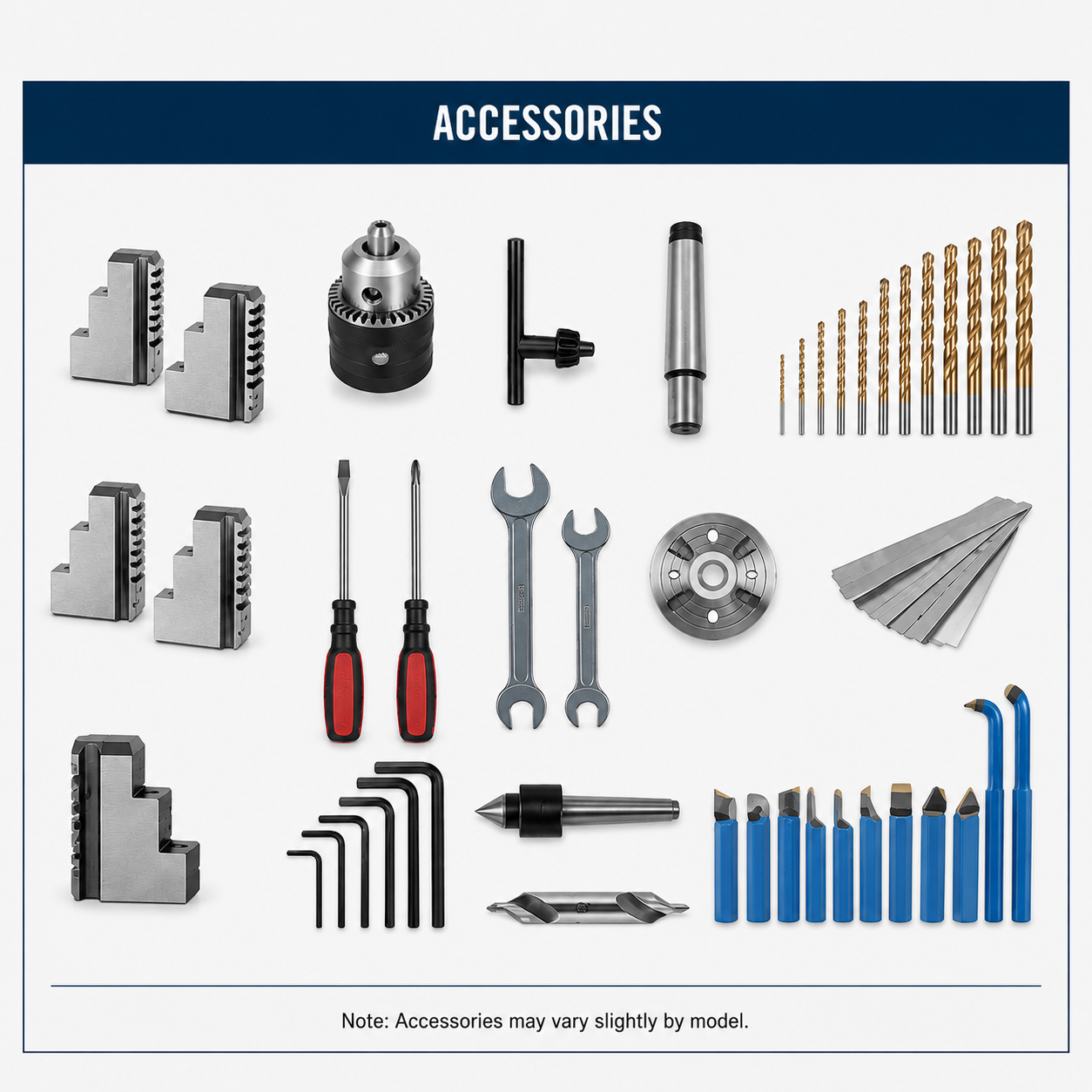

What's included

  • WM210A lathe body
  • 125mm 3-jaw chuck
  • Tool box
  • User manual

Warranty & support

12-month warranty support pathway on eligible products. Freight, misuse, consumables, installation errors and normal wear are excluded unless required by New Zealand law.

FAQ

What is the main difference between the WM210A and WM210V?

The WM210A adds an electronic gearbox system for quicker feed and metric or imperial threading setup. The WM210V is the simpler variable-speed choice; the WM210A is better when frequent thread and feed changes matter.

Which distance-between-centres option should I choose?

Choose the shortest bed that comfortably covers your usual work. The 400mm version saves bench space, while a longer option gives more room for shafts and drilling setups but needs a longer, stronger bench and more delivery access.

What electrical setup is required in New Zealand?

We confirm the supplied machine's voltage, plug and circuit requirements before dispatch. Do not rely on a travel adaptor; if your workshop needs a new outlet or fixed wiring, use a licensed New Zealand electrical worker.

Does the electronic gearbox make threading automatic?

It simplifies feed and thread-pitch selection, but the operator must still select the correct settings, tool, speed and cutting procedure. Always test the setup and follow the manual before cutting a finished part.

What should I prepare for delivery and installation?

Allow for a packaged machine heavier than a typical parcel, clear access from the delivery point and a rigid level bench. Freight is quoted for your address, and lifting or placement beyond standard delivery should be arranged separately.
